Description

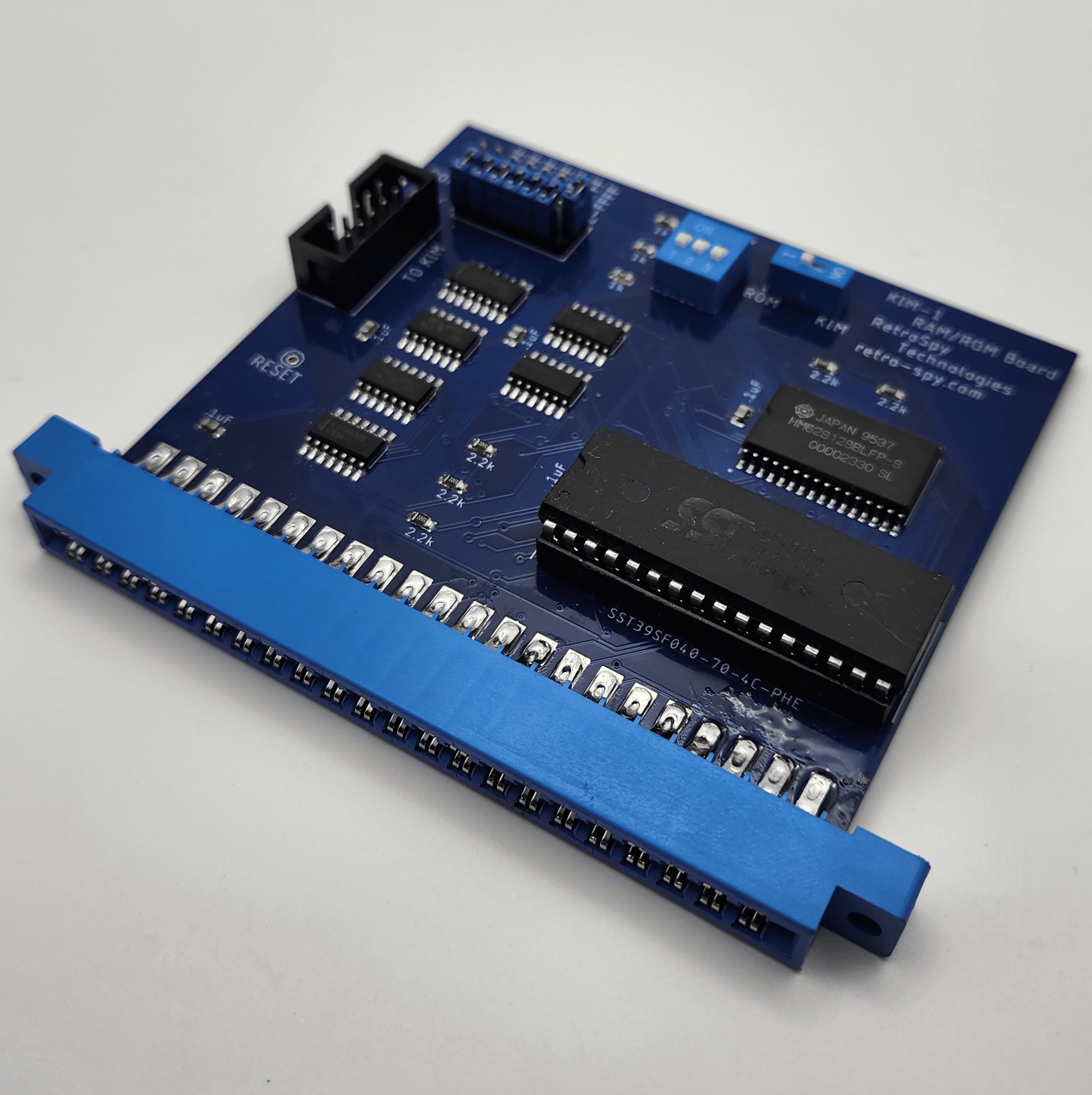

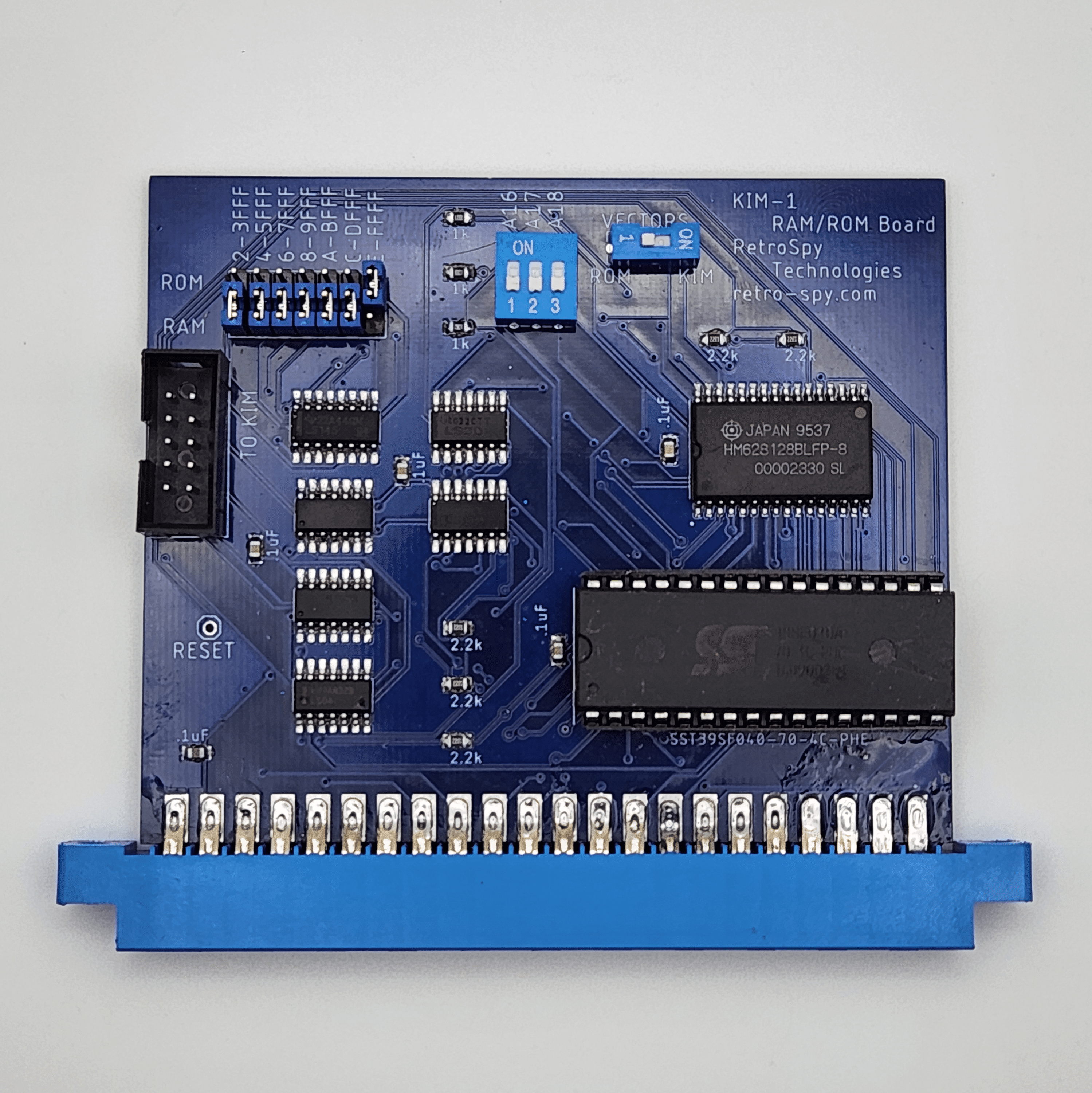

The KIM-1 RAM/ROM board is custom board than expands the memory of the KIM-1 single board computer.

Features

• Can provide 8k blocks of RAM or ROM between 0x2000 & 0xFFFF
• Fills in the KIM’s missing RAM between 0x0400 and 0x13FF
• 2 pages of DIP switch selectable ROM, upgradeable to 4 or 8 with a 39SF020 or 39SF040
• Includes a pre-programmed 39SF010 containing 2 pages of common KIM-1 configurations
• Backwards compatible with Corsham Technologies’ KIM-1 I/O Board

Includes full color manual and 2×5 pin IDC cable.

Inspiration taken from a design by Bob Applegate of Corsham Technologies, LLC.
