Description

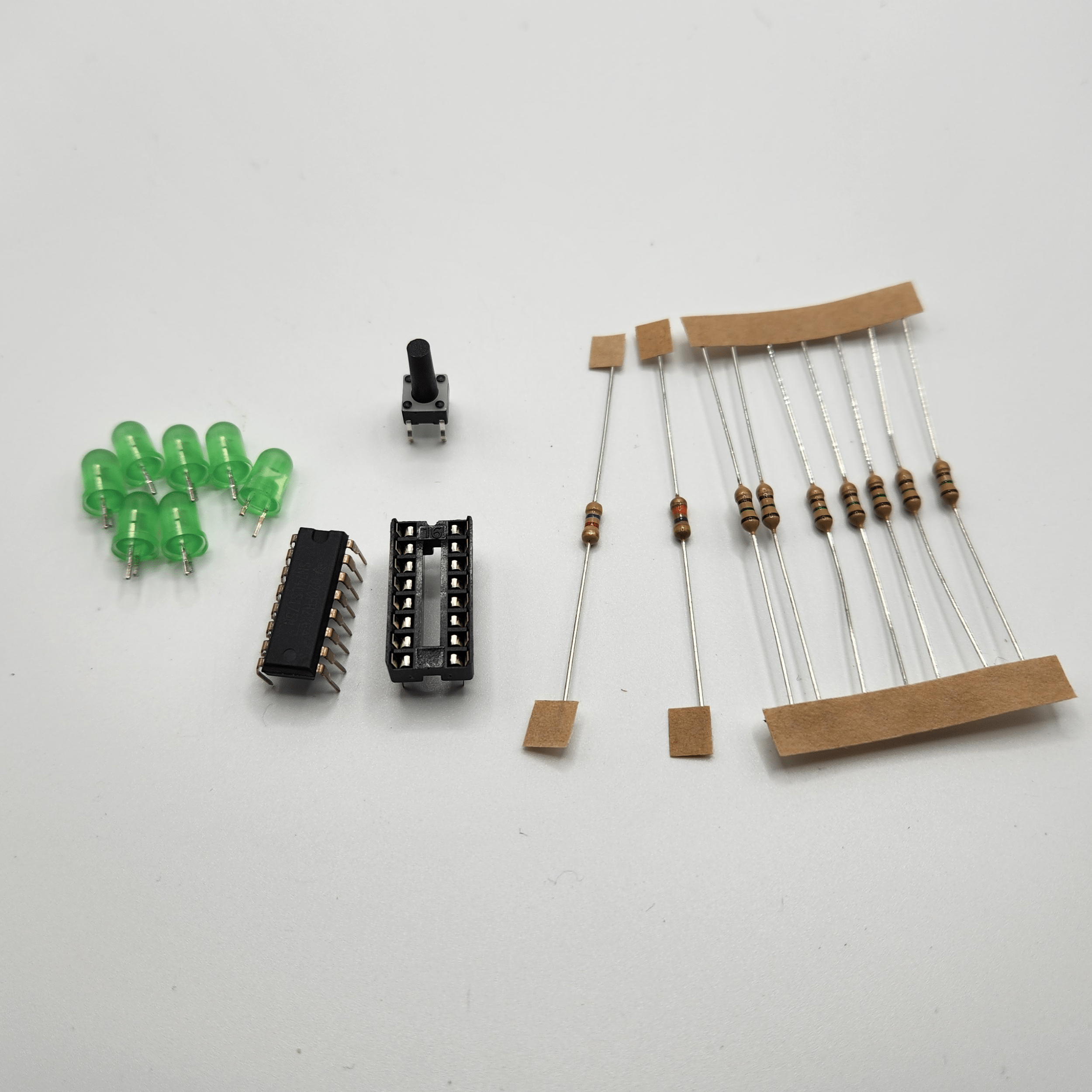

Parts Kit for the Simple 1d6 Demo Board.

Kit Includes

• R1 – 4.7 kOhms ±5% 1/4W Through Hole Resistor
• R2 – 47 kOhms ±5% 1/4W Through Hole Resistor
• R3-R9 – 150 Ohms ±5% 1/4W Through Hole Resistor
• D1-D7 – Green LED 2.2V Radial
• S1 – Tactile Switch SPST Top Actuated Through Hole
• U1 – SN74LS175N
• J1 – 1×2 Standard Header Pins
• J2 – 1×10 Standard Header Pins
