Description

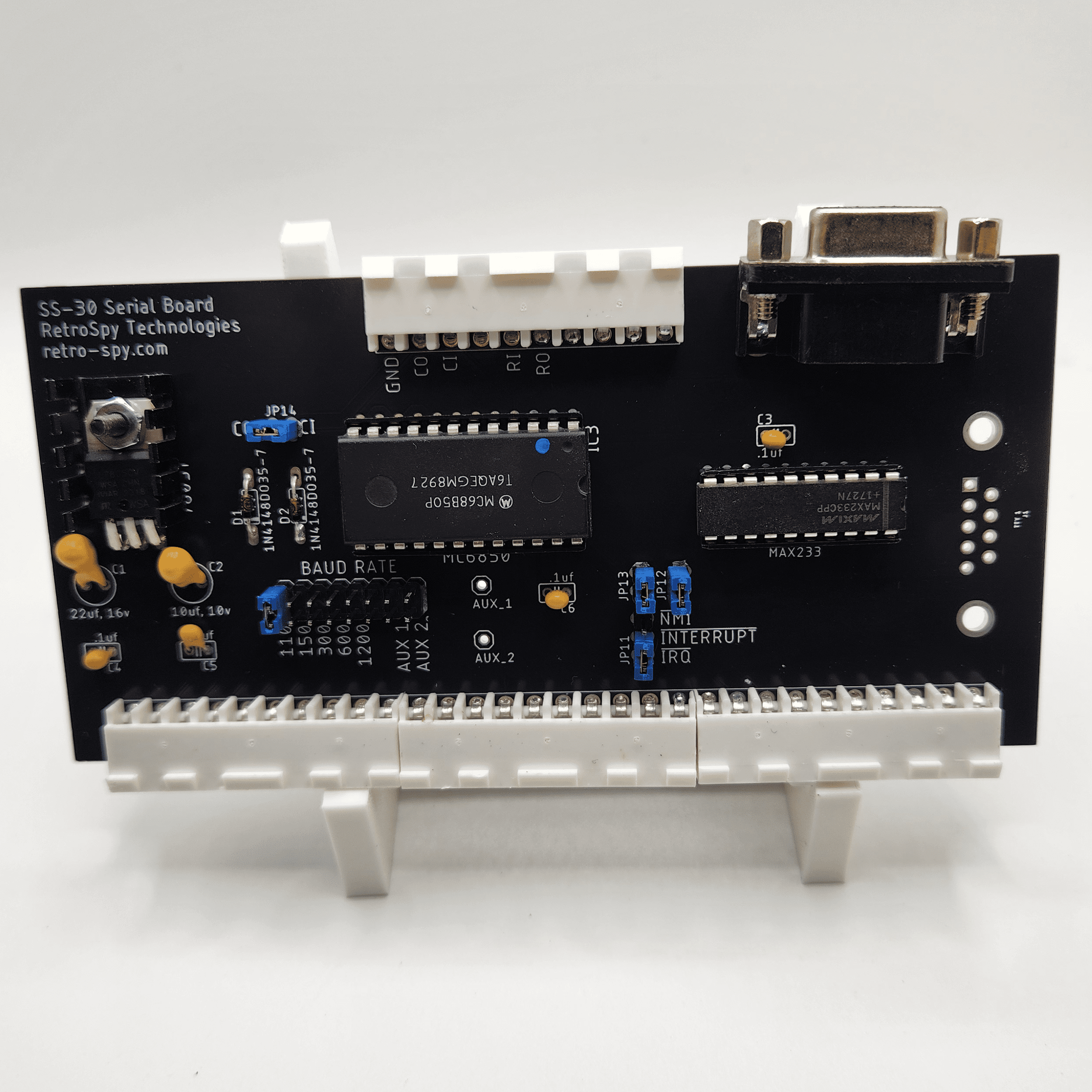

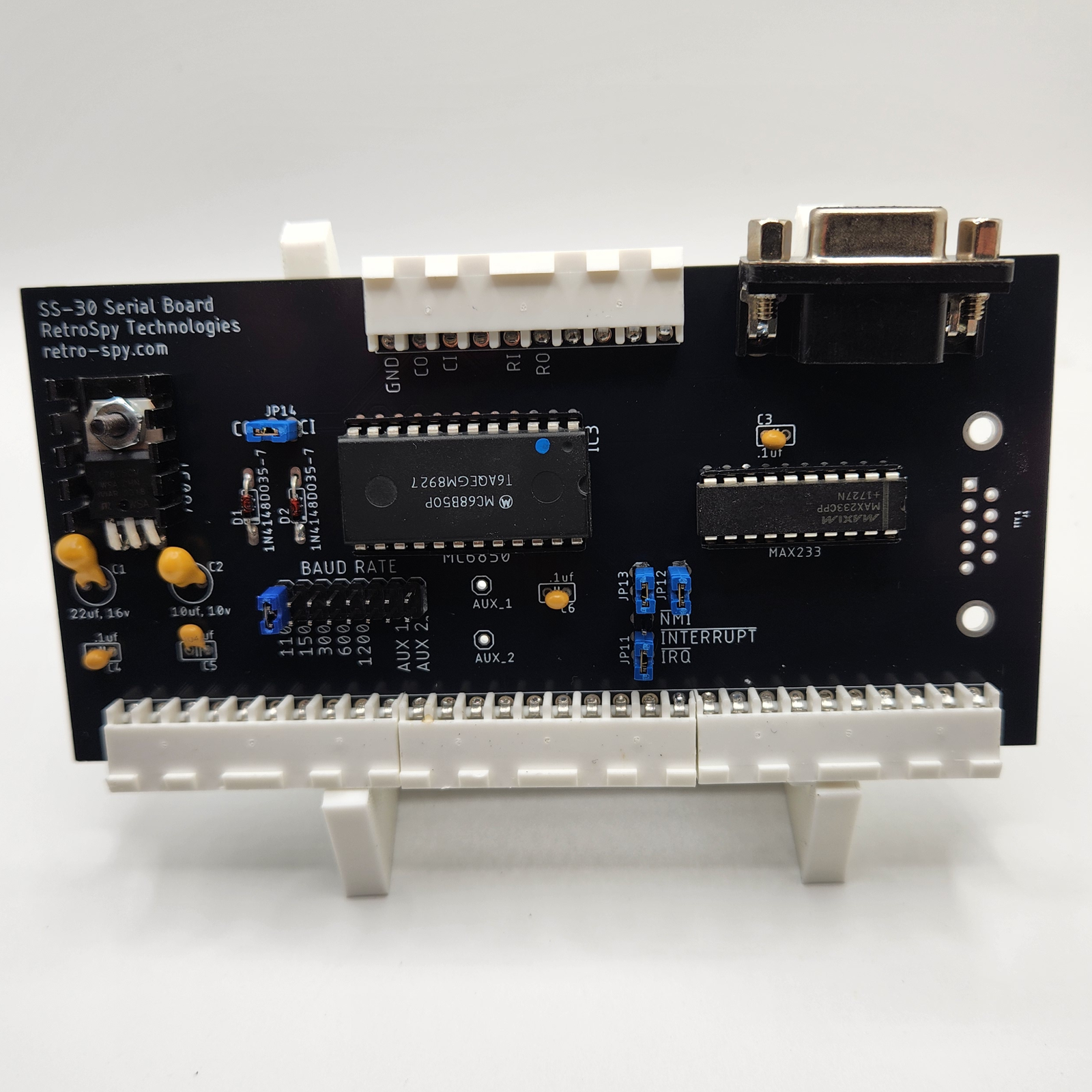

The RetroSpy Technologies SS-30 Serial Board is an SWTBUG/SBUG compatible serial port using an MC68B50 ACIA.

Features

• Fully software compatible with MP-S.  SWTBUG and SBUG works perfectly with it.
• Jumper selectable baud rates like the MP-S.
• 10 pin Molex connector along the top for connecting to existing wiring.
• DB-9 located on the top of the card making it much easier to connect a modern computer as a terminal.
• Capable of operating at 1Mhz and 2Mhz

This card only supports RS-232.  It cannot be used with a TTY (Teletype) or with a Cassette interface.

Inspired by the work of Corsham Technologies.
