Description

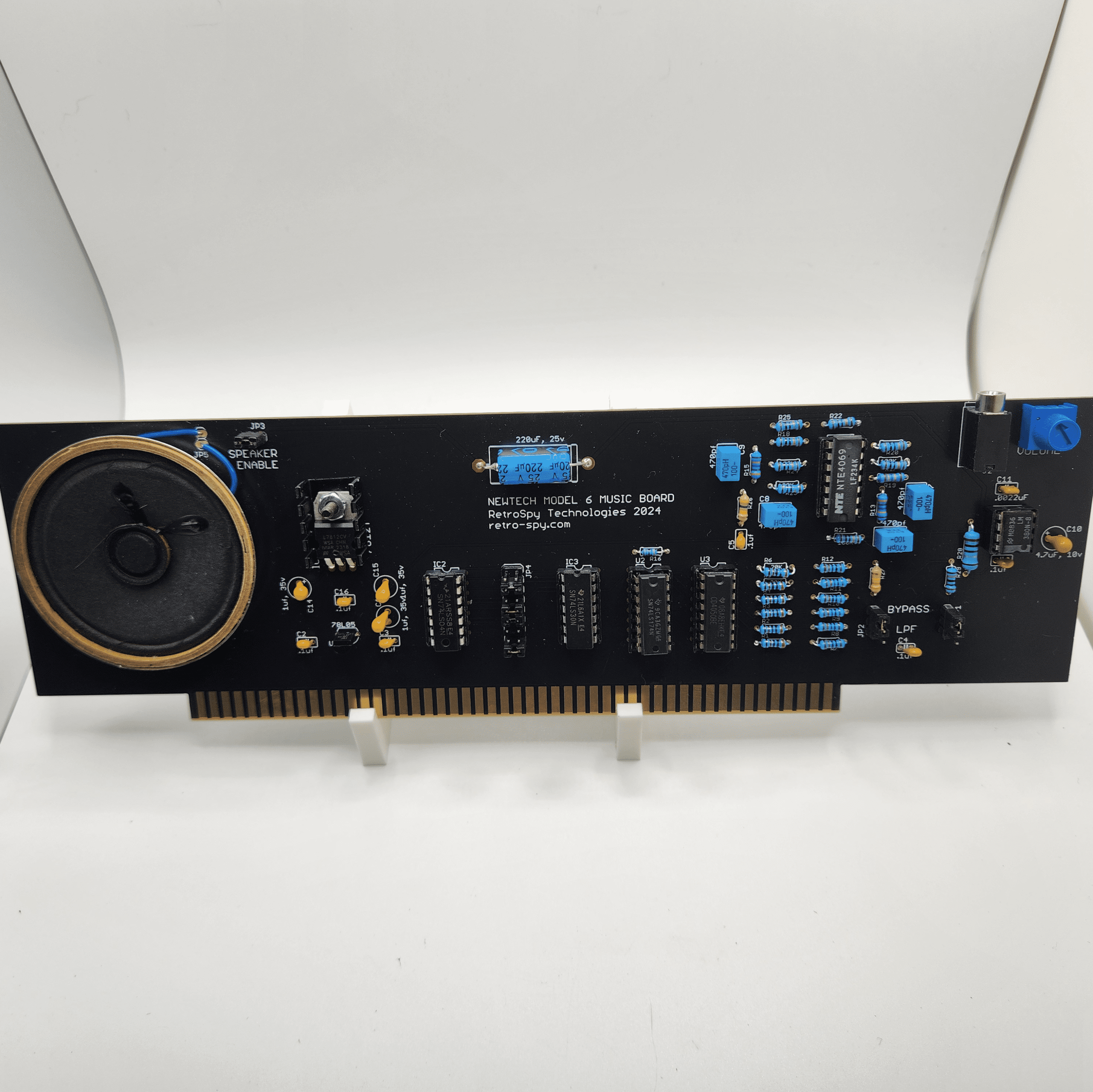

This is a modern reproduction of the Newtech Model 6 Music Card for S-100 based machines. It looks nothing like the original, but is functionally identical.

The original board enabled anyone with an S-100 bus computer to produce music and sound effects.  Applications include generating melodies, rhythms, sound effects, Morse code, touch-tone synthesis, etc.  Its features included selectable output port address decoding, a latched 6-bit digital-to-analog converter, audio amplifier, speaker, volume control, and RCA phono jack for convenient connection to your home audio system.

The Newtech Model 6 Music Card Users Manual provides complete documentation and includes a BASIC Language program for writing musical scores and an 8080 Assembly Language routine for playing them.

Change in the Reproduction

• RCA jack replaced with a mono 1/8″ headphone jack
• Speaker disabled via jumper shunt and not by cutting wire jumper
• Includes the optional Low Pass Filter add-on, which can be bypassed via jumpers

The detailed manual for this board can be obtained on DeRamp.com or the S100Computers.com website.
