Description

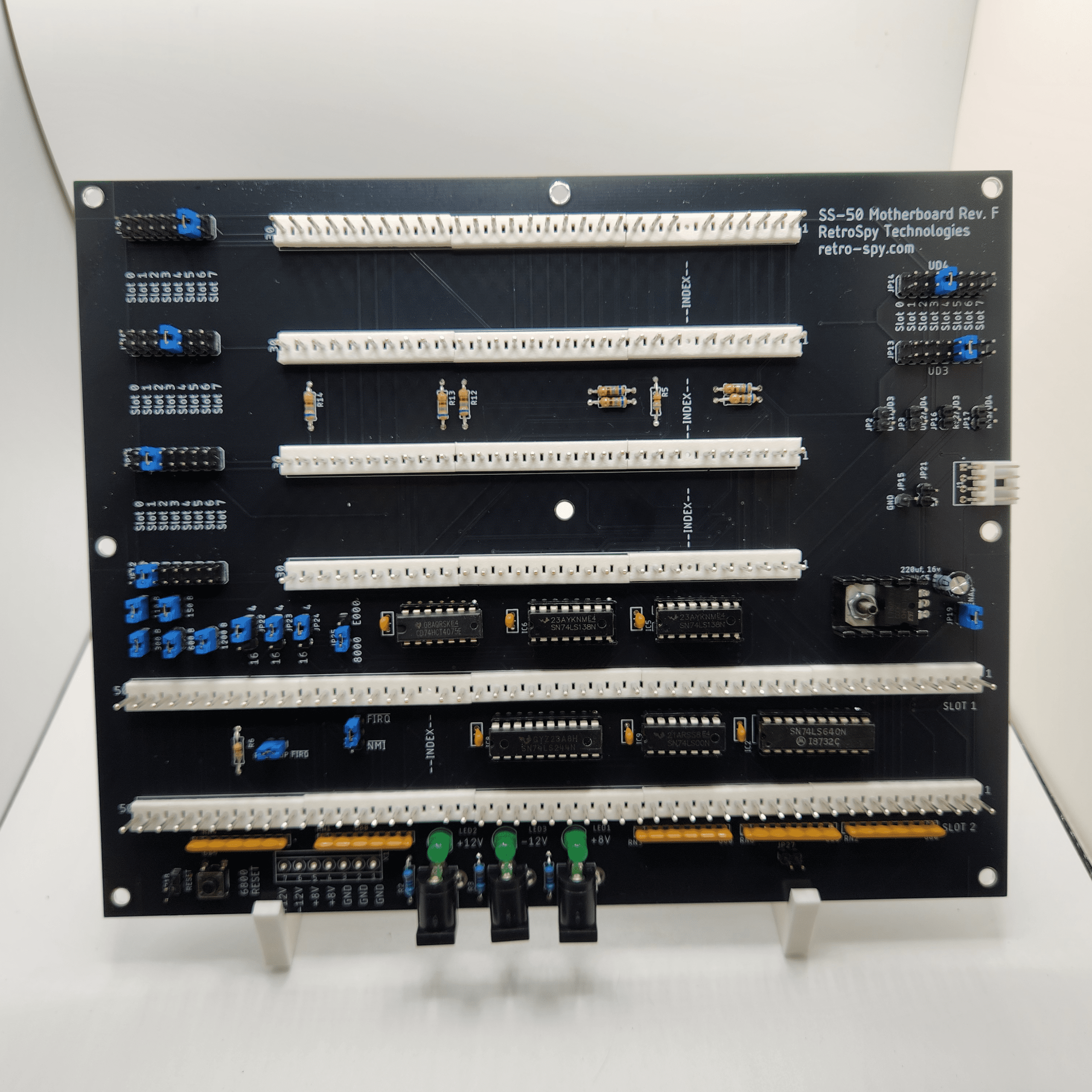

The RetroSpy Technologies SS-50 motherboard is a modern and compact take on a SS-50/30 motherboard.  Intended for use with the RetroSpy Technologies 6800 CPU Board and one or more SS-30 peripheral boards, but works with vintage SS-50/30 boards also.

Features

• Supports both 6800 CPUs and 6809 CPU boards
• Compact size measuring 8.5 by 7 inches

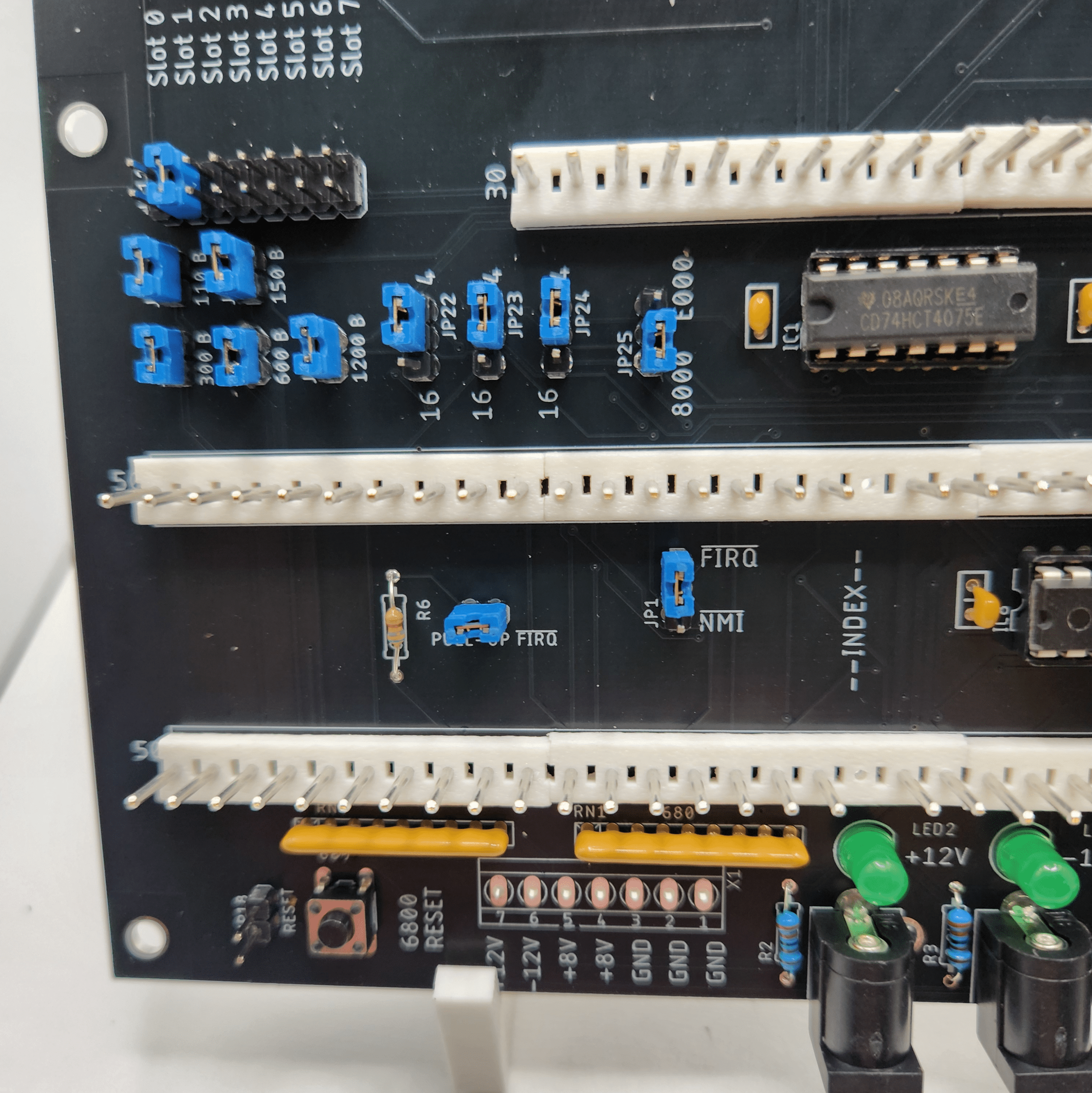

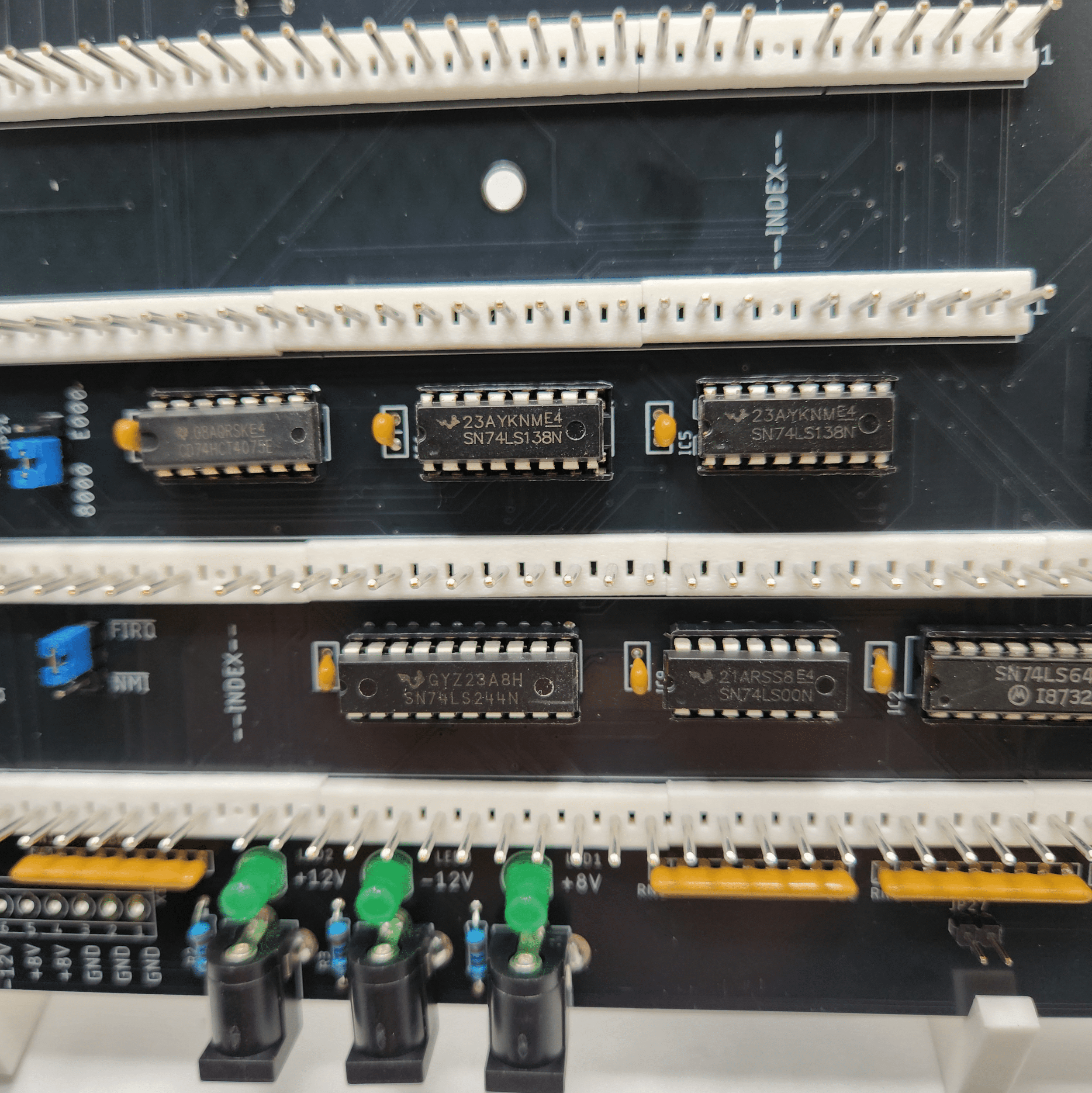

• Barrel connectors for 8, 12 and -12 volts, with LED indicators (5.5mm OD x 2.1 mm ID with center positive)
• Two SS-50 slots

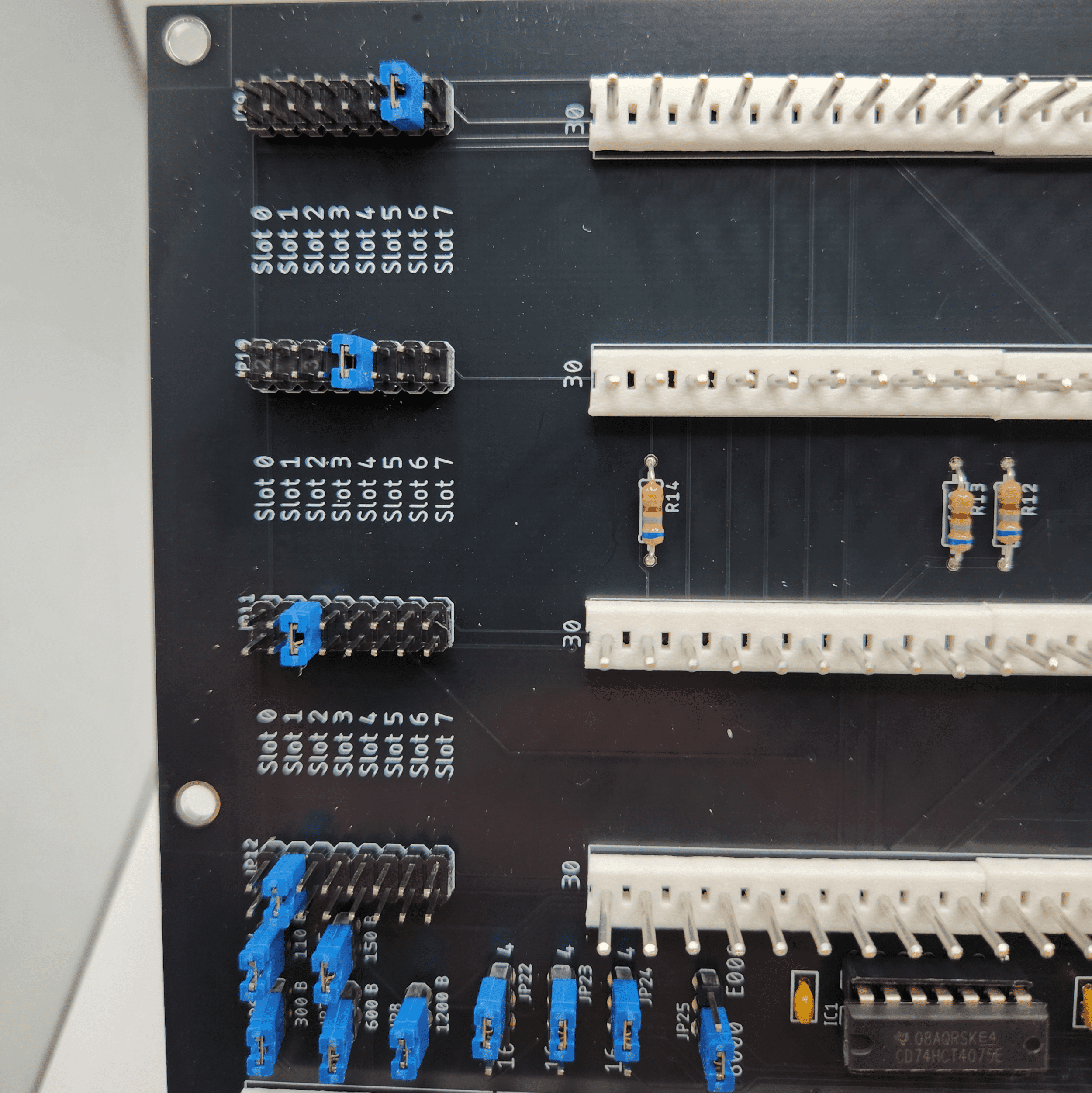

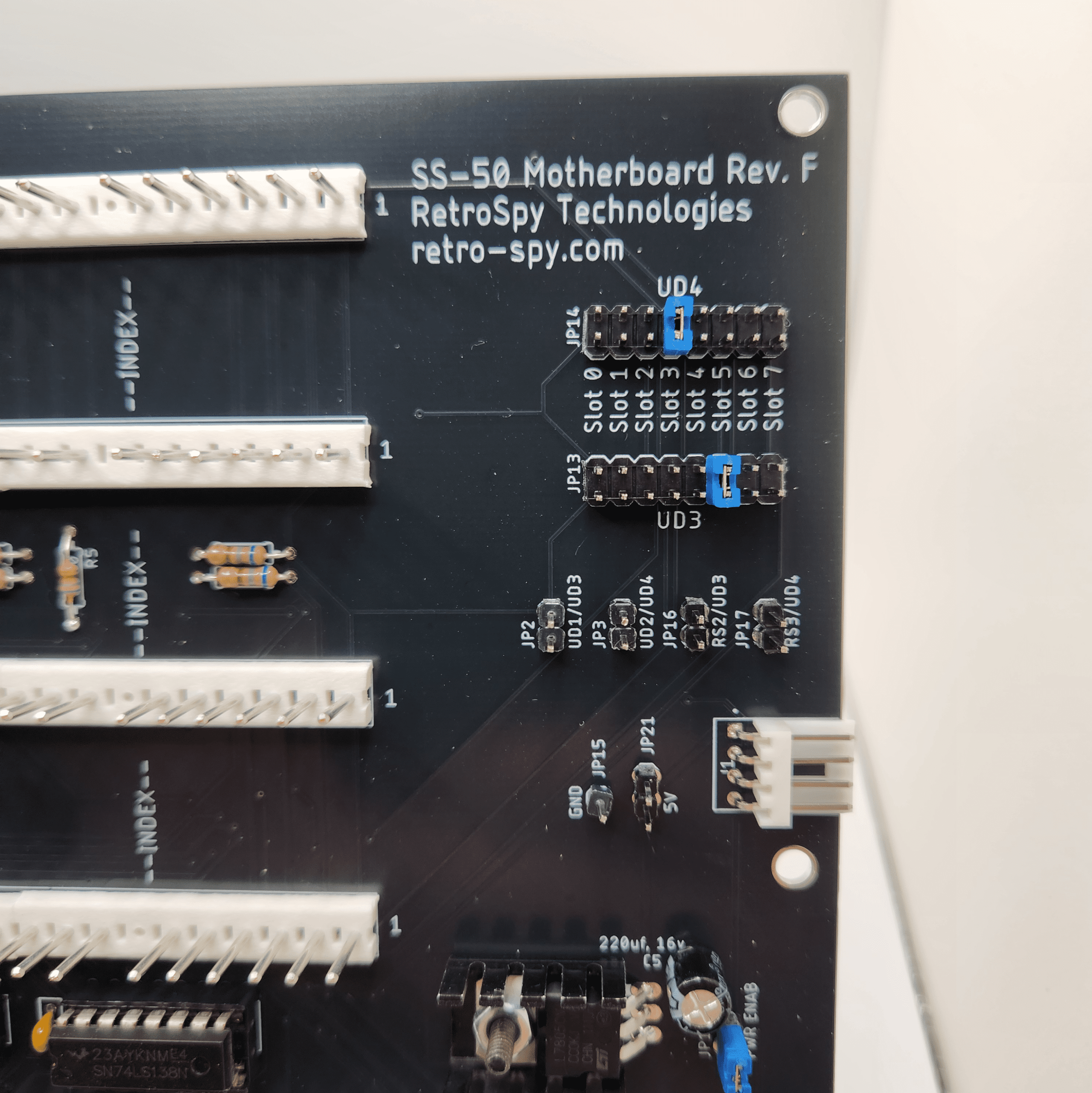

• Four SS-30 slots (I/O), each of which can be set to any slot number between 0 and 7

Inspired by the work of Corsham Technologies and Peripheral Technology.
