Description

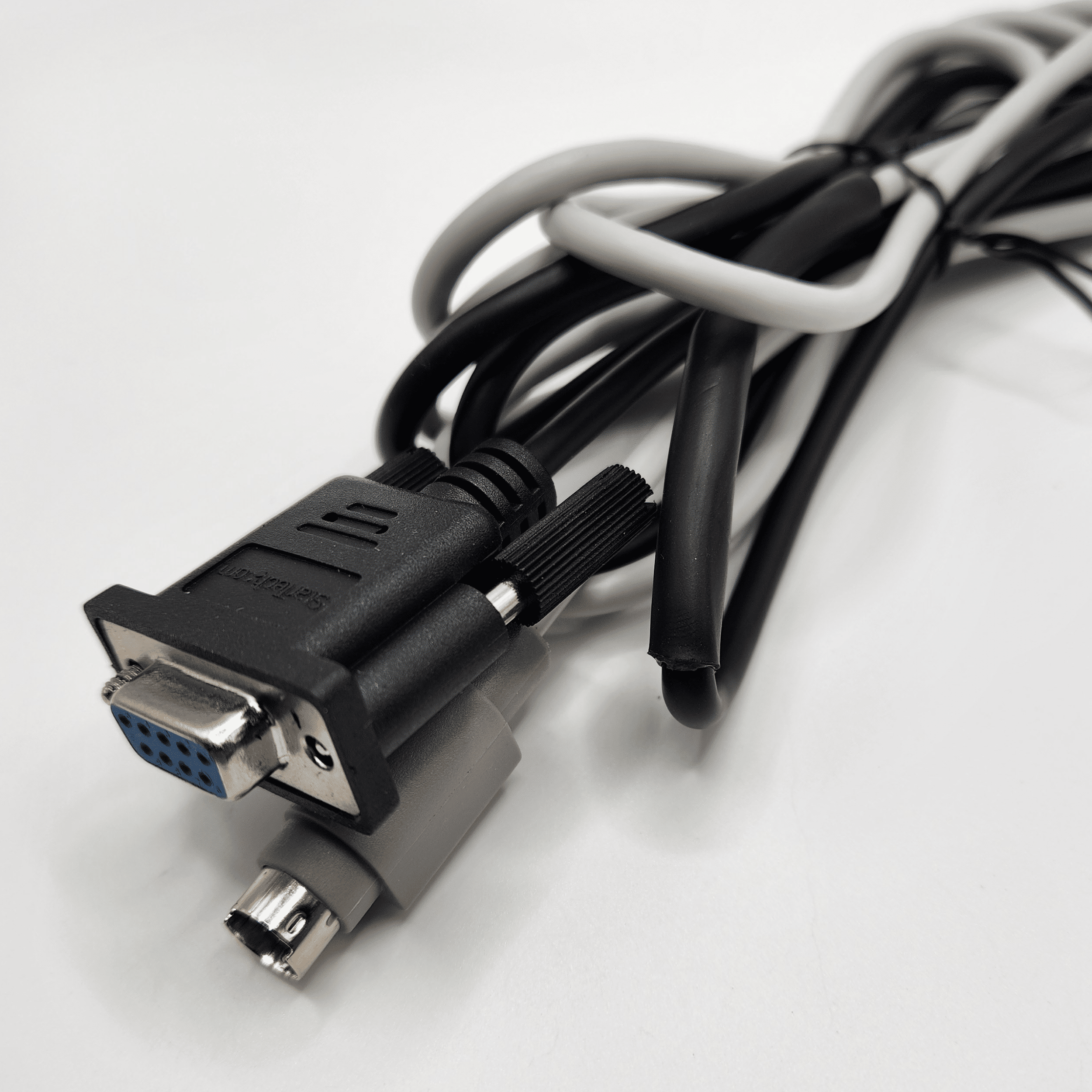

A fully assembled Macintosh to PC null modem cable. The Mac end of the cable is a 8-pin mini-DIN connector. The PC end of the cable is a female DB-9 connector. This cables primary purpose is getting old Macs online via a Raspberry Pi running SLiRP.
Pinout
| Macintosh Signal Description |
Mac DIN 8 Male |
PC DB 9 Female |
| HSKo (Output Handshake) |
1 (OUT) |
8, 6, 1 (CTS, DSR, DCD) |
| HSKi (Input Handshake) |
2 (IN) |
7 (RTS) |
| TxD− (Transmit Data −) |
3 (OUT) |
2 (RxD) |
| GND (Signal Ground) |
4 (GND) |
5 (GND) |
| RxD− (Receive Data −) |
5 (IN) |
3 (TxD) |
| TxD+ (Transmit Data +) |
6 (OUT) |
— |
| GPi (General Purpose Input) |
7 (IN) |
4 (DTR) |
| RxD+ (Receive Data +) |
8 (IN, GND = RS232 Mode) |
5 (GND) |
