Description

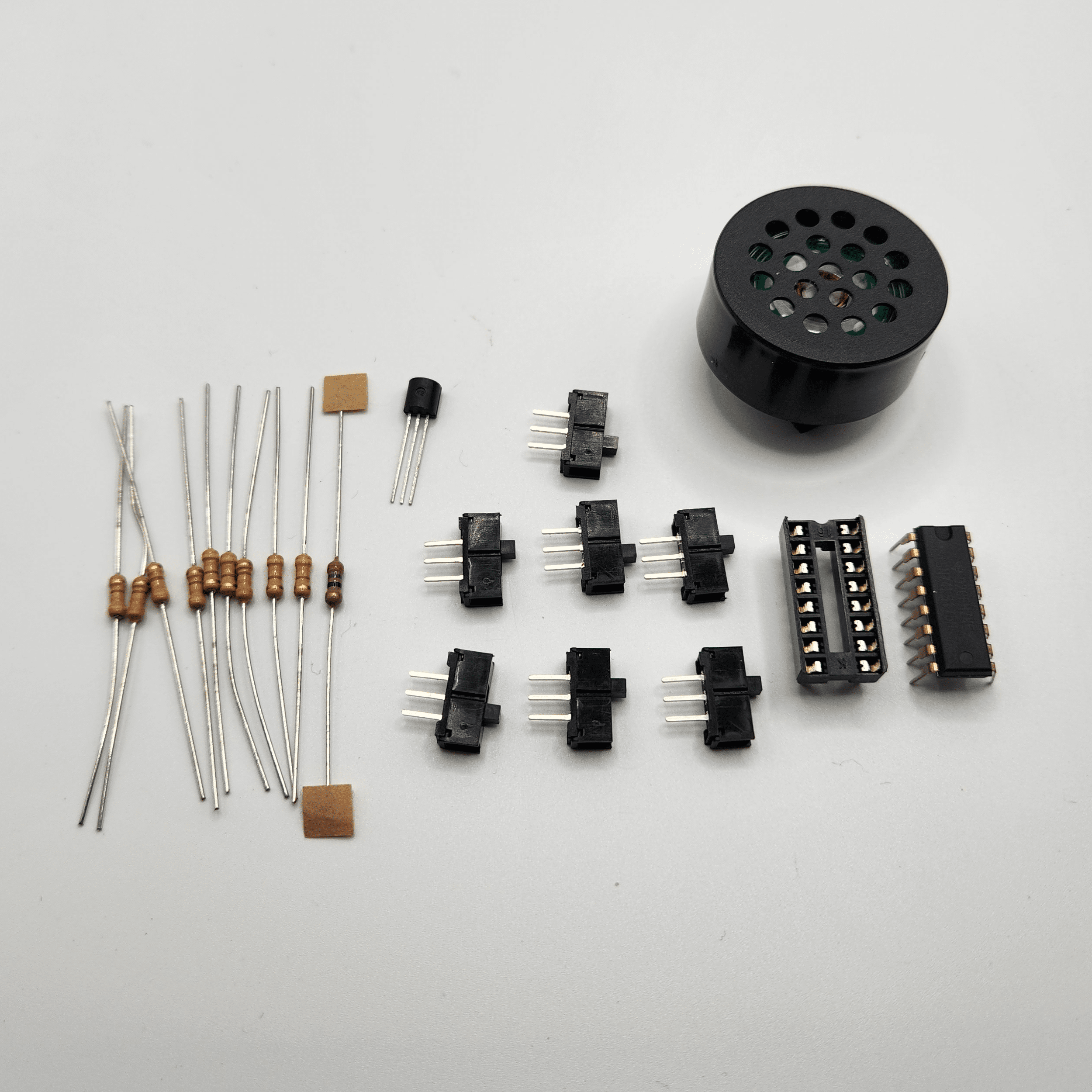

Parts Kit for the Simple Speaker & Switches Demo Board version 3.

Kit Includes

• R1,R2 – 3.3 kOhms ±5% 1/4W Through Hole Resistor
• R2 – 27 Ohms ±5% 1/4W Through Hole Resistor
• Q1 – Bipolar (BJT) Transistor PNP 40 V 250MHz Through Hole TO-92-3
• SW1-SW7 – Slide Switch SPDT Through Hole
• J1 – 1×10 Standard Header Pins
• LS1 – Breadboard-Friendly PCB Mount Mini Speaker – 8 Ohm 0.2W
• R4-R10 – 4.3 kOhms ±5% 1/4W Through Hole Resistor
• J2 – 1×2 Standard Header Pins
• U1 – SN74LS175N
